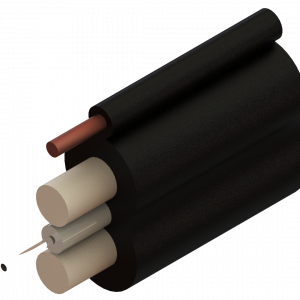

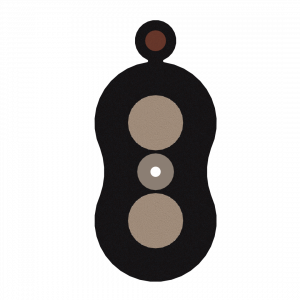

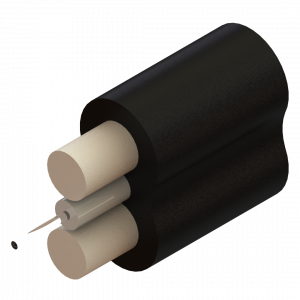

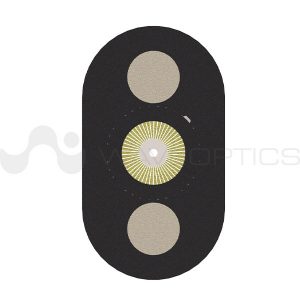

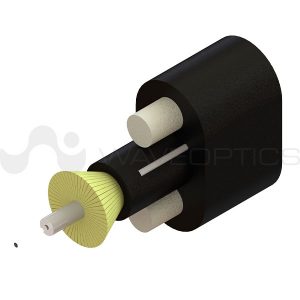

Reel-in-a-Box Toneable Flat Drop Indoor/Outdoor Simplex Cable
Waveoptics® Toneable Flat Drop Indoor/Outdoor Simplex Cable is designed to meet the requirements for indoor/outdoor drop cables with a fully dielectric construction, simplifying the transition from the outdoor environment to an indoor Optical Network Terminal (ONT).
Small sub-unit diameter and bend radius that allow an easy installation in space-constrained areas.
PE outer jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.
PVC Riser inner jacket is available for the sub-unit that contains the optical fiber.
Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance.
The FRP strength members are coated with EAA for improved adherence and water penetration.
Reel-in-a-box packaging makes a quicker and easier installation, providing a cost-friendly and time-efficient installation method.
Design Properties
| Fiber per Tube | 1 |
| Nominal Outer Dimensions | 10.0 mm x 4.5 mm (0.39 in x 0.18 in) (±5%) |
| Dielectric Strength Member Material / Diameter | EAA Coated FRP / 1.65 mm (0.065 in) |
| Toning Conductor | 24 AWG Copper Wire |
| Outer Jacket Material | Polyethylene |
| Tight Buffer / Inner Jacket Material | PVC Riser & PVC Riser UV |
| Drum Length | 2,000 ft (+5%) |
Temperature Range
| Operation | -40°C to 70°C (-40°F to 158°F) |
| Installation | -30°C to 70°C (-22°F to 158°F) |
| Storage / Transport | -40°C to 70°C (-40°F to 158°F) |
Mechanical Properties
| Crush Resistance (Short-Term / Long-Term) | 2,200 N/100mm / 1,100 N/100mm |
| Minimum Bend Radius (Operation / Installation) | 10 x OD / 20 x OD |
