Reel-in-a-Box Toneable Flat Drop Cable

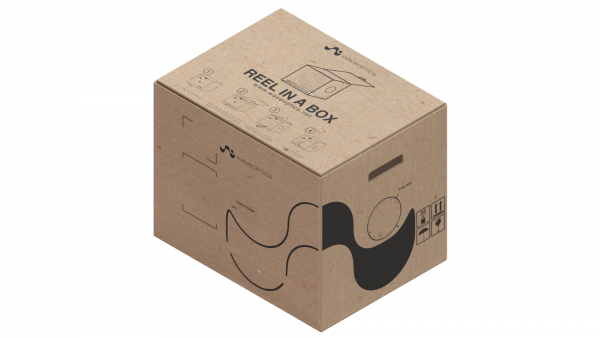

Reel-in-a-box packaging makes a quicker and easier installation, providing a cost-friendly and time-efficient installation method.
Waveoptics® Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.
Copper toning conductor allows effortless detection in direct-buried installation.

APPLICATIONS
PROTECTIONS

Clear

Description

Reel-in-a-Box Toneable Flat Drop Cable
Waveoptics® Toneable Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.

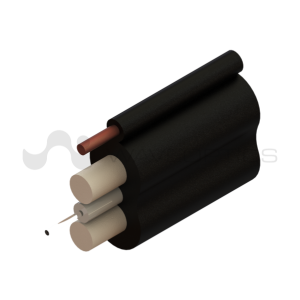

Single loose tube made of PBT which provides great mechanical properties under a wide range of conditions such as crush test and impact test. PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

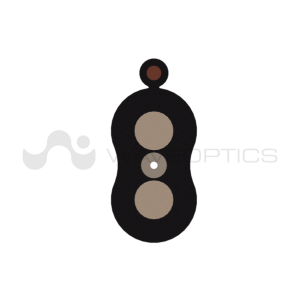

Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.

Copper toning conductor allows effortless detection in direct-buried installation.

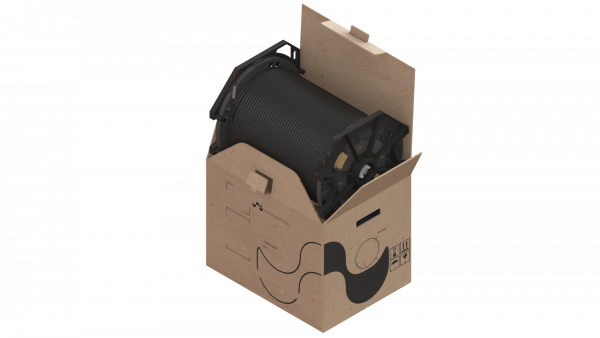

Reel-in-a-box packaging makes a quicker and easier installation, providing a cost-friendly and time-efficient installation method.

Additional information

Fiber Count

1 Fiber, 2 Fibers, 4 Fibers, 6 Fibers, 8 Fibers, 12 Fibers

Fiber Type

Waveoptics G652.D, Waveoptics G657.A1, Waveoptics G657.A2, OFS G652.D, OFS AllWave® FLEX

LT Water Protection

Dry, Gel-Filled

Design Properties

Fiber per Tube1-12
Nominal Outer Dimensions10.0 mm x 4.5 mm (0.39 in x 0.18 in) (±5%)
Dielectric Strength Member Material / DiameterEAA Coated FRP / 1.65 mm (0.06 in)
Toning Conductor24 AWG Copper Wire
Outer Jacket MaterialPolyethylene
Loose Tube Material / DiameterPP / 3 mm (0.12 in)
Drum Length2,000 ft (±5%)

Temperature Range

Operation-40°C to 70°C (-40°F to 158°F)
Installation-30°C to 70°C (-22°F to 158°F)
Storage / Transport-40°C to 70°C (-40°F to 158°F)

Mechanical Properties

Crush Resistance (Short-Term / Long-Term)2,200 N/100mm / 1,100 N/100mm
Minimum Bend Radius (Operation / Installation)10 x OD / 20 x OD
