Toneable Flat Drop Indoor/Outdoor Simplex Cable

Waveoptics® Toneable Flat Drop Indoor/Outdoor Simplex Cable is designed to meet the requirements for indoor/outdoor drop cables, simplifying the transition from the outdoor environment to an indoor Optical Network Terminal (ONT).

APPLICATIONS
PROTECTIONS

Only applicable for inner jacket

Only applicable for outer jacket

2,000 ft
5,000 ft
10,000 ft
15,000 ft
20,000 ft
Clear

Description

Toneable Flat Drop Indoor/Outdoor Simplex Cable
Waveoptics® Toneable Flat Drop Indoor/Outdoor Simplex Cable is designed to meet the requirements for indoor/outdoor drop cables, simplifying the transition from the outdoor environment to an indoor Optical Network Terminal (ONT).

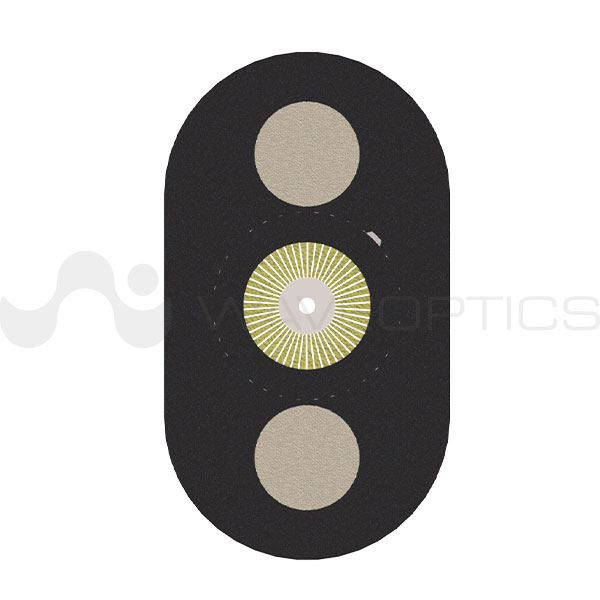

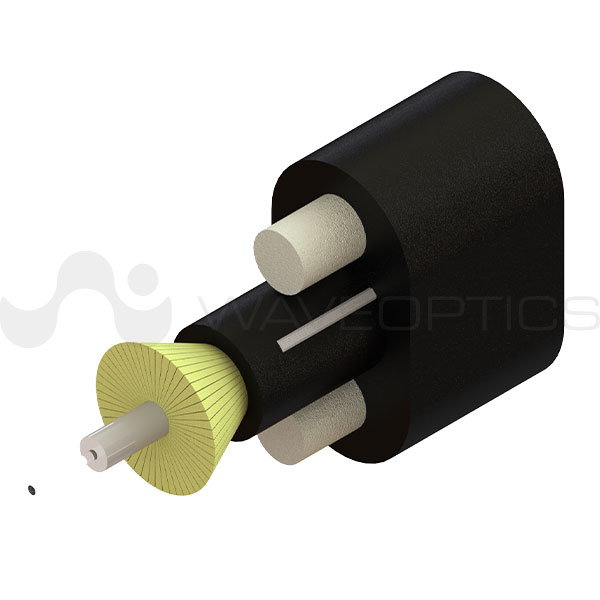

Small sub-unit diameter and bend radius that allow an easy installation in space-constrained areas.

PE outer jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

PVC Riser, PVC Plenum and LSZH inner jackets are available for the sub-unit that contains the optical fiber.

Two parallel dielectric strength members that offer exceptional crush resistance. The FRP strength members are coated with EAA for  improved adherence.

Copper toning conductor allows effortless detection in direct-buried installation.

Additional information

Fiber Type

Waveoptics G657.A1, Waveoptics G657.A2, Waveoptics G657.B3, OFS AllWave® FLEX, OFS EZ-Bend®

Inner Jacket Color

Black

Cable Length

2,000 ft, 5,000 ft, 10,000 ft, 15,000 ft, 20,000 ft

Design Properties

Fiber per Tube 1
Nominal Outer Dimensions 10.2 mm x 4.5 mm (0.4 in x 0.18 in) (±5%)
Dielectric Strength Member Material / Diameter EAA Coated FRP / 1.65 mm (0.065 in)
Toning Conductor 24 AWG Copper Wire
Outer Jacket Material Polyethylene
Tight Buffer / Inner Jacket Material PVC Riser / PVC Riser UV
Drum Length 2,000 ft, 5,000 ft ,10,000 ft, 15,000 ft, 20,000 ft & 40,000(±5%)

Temperature Range

Operation -40°C to 70°C (-40°F to 158°F)
Installation -30°C to 70°C (-22°F to 158°F)
Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

Crush Resistance (Short-Term / Long-Term) 2,200 N/100mm / 1,100 N/100mm
Minimum Bend Radius (Operation / Installation) 10 x OD / 20 x OD
