Reel-in-a-Box Flat Drop Cable 3mm

Reel-in-a-box packaging makes a quicker and easier installation, providing a cost-friendly and time-efficient installation method.
Waveoptics® Flat Drop Cable designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.

APPLICATIONS
PROTECTIONS

Clear

Description

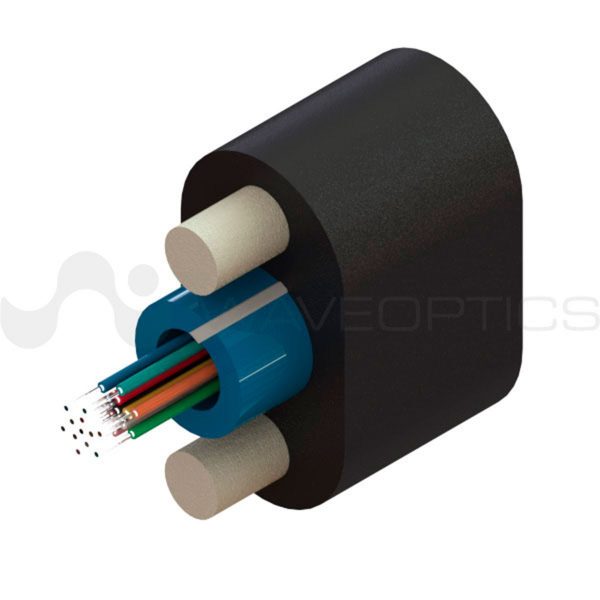

Reel-in-a-Box Flat Drop Cable 3mm
Waveoptics® Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation.
Single loose tube made of PBT which provides great mechanical properties under a wide range of conditions such as crush test and impact test. PE single jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.
Two parallel dielectric strength members that require no bonding or grounding, offering exceptional crush resistance. The FRP strength members are coated with EAA for improved adherence.
Reel-in-a-box packaging makes a quicker and easier installation, providing a cost-friendly and time-efficient installation method.

Additional information

Fiber Count

1 Fiber, 2 Fibers, 4 Fibers, 6 Fibers, 8 Fibers, 12 Fibers

Fiber Type

Waveoptics G652.D, Waveoptics G657.A1, Waveoptics G657.A2, OFS G652.D, OFS AllWave® FLEX, OFS AllWave® FLEX+

LT Water Protection

Dry, Gel-Filled

Design Properties

Fiber per Tube 1-12
Nominal Outer Dimensions 8.1 mm x 4.5 mm (0.32 in x 0.18 in) (±5%)
Dielectric Strength Member Material / Diameter EAA Coated FRP / 1.5 mm (0.06 in)
Outer Jacket Material Polyethylene
Loose Tube Material / Diameter PBT / 3 mm (0.12 in)
Drum Length 1,500 ft (±5%)

Temperature Range

Operation -40°C to 70°C (-40°F to 158°F)
Installation -30°C to 70°C (-22°F to 158°F)
Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

Crush Resistance (Short-Term / Long-Term) 2,200 N/100mm / 1,100 N/100mm
Minimum Bend Radius (Operation / Installation) 10 x OD / 20 x OD
