Micro Flat Drop Cable
Waveoptics® Micro Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric
design, ideal for drop applications, offering ease of access as well as easy installation.
design, ideal for drop applications, offering ease of access as well as easy installation.
APPLICATIONS
PROTECTIONS
- Description
- Additional information
- Properties
- Data Sheets
Description
Micro Flat Drop Cable

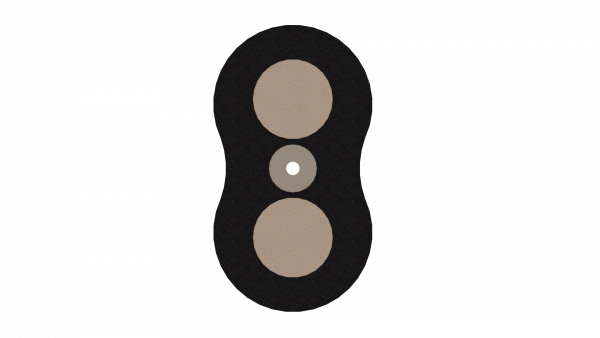

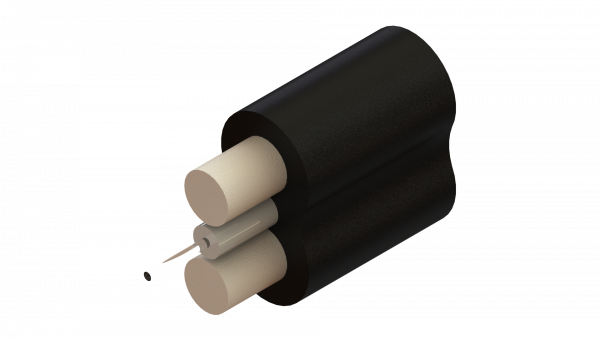

Waveoptics® Micro Flat Drop Cable is designed for self-supporting, direct-buried and duct installations. Fully dielectric design, ideal for drop applications, offering ease of access as well as easy installation. Compact and robust design provides ease of handling and also reduces transportation and storage costs. Available in 250 micron bare fiber (1, 2 or 4 Fibers) and 900 micron tight buffered fiber (1 Fiber) configurations.
Additional information
| Fiber Count | 1 Fiber, 2 Fibers, 4 Fibers |
|---|---|
| Fiber Type | Waveoptics G657.A1, Waveoptics G657.A2, Waveoptics G657.B3 |
| Cable Length | 2,500 ft, 5,000 ft, 10,000 ft, 20,000 ft |
Design Properties
| Fiber Count | 1-4 |
| Tight Buffer Diameter / Bare Fiber Diameter |
0.9 mm / 0.25 mm |
| Dielectric Strength Member | EAA Coated FRP / 1.35 mm |
| Outer Jacket Material | PE |
| Tight Buffer Material (900um configuration) | LSZH |
| Drum Length | 5,000 ft, 10,000 ft & 20,000 ft (±5%) |
Temperature Range
| Operation | -40°C to 70°C (-40° F to 158° F) |
| Installation | -30°C to 70°C (-22° F to 158° F) |
| Storage / Transport | -40°C to 70°C (-40° F to 158° F) |
Mechanical Properties
| Crush Resistance (Short-Term / Long-Term) |
2,200 N/100 mm / 1,100 N/100 mm |
| Minimum Bend Radius (Operation / Installation) |
10 x OD / 20 x OD |
