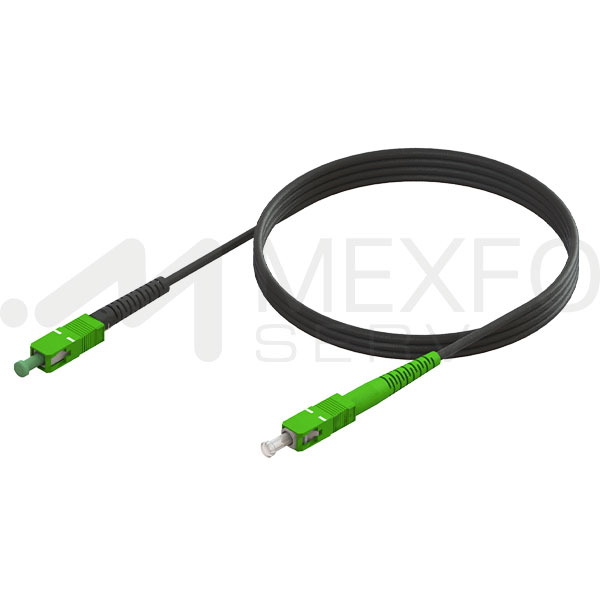

Drop Fiber Optic Pushable Jumper
The MEXFOSERV® fiber optic pushable jumpers are engineered for the complete execution of today’s FFTH applications needs. We have a large stock of cables and connectors for a fast turnaround on custom assemblies.
- Description
- Additional information
- General Characteristics
- Standards
- Data Sheet
Description
Drop Fiber Optic Pushable Jumper
The MEXFOSERV® fiber optic pushable jumpers are engineered for the complete execution of today’s FFTH applications needs. We have a large stock of cables and connectors for a fast turnaround on custom assemblies.
These factory-based assemblies are machine polished to ensure excellence in performance internateability and durability. Pushable jumpers are ideal to be installed through microducts. All pushable assemblies can be pushed in all fieldshield microducts and small holes in most FTTX scenarios. This special connector reduces installation time and removes the need to splice on-field by simply installing the housing after installation.
Applications
| • Telecom |
| • Data Transfer |
| • CATV |
| • Indoor & outdoor applications |
| • FTTX |
Additional information
| Length | 5 ft, 10 ft, 100 ft, 350 ft, 500 ft |
|---|
General Characteristics
| • Custom Lengths |
| • Variety of standard lengths ranging from 5 ft up to 500 ft |
| • Serial number for each jumper |
| • Insertion Loss ?0.2dB |
| • APC Polish |
| • Return loss ?-65dB (APC) |
| • Available with SC connectors |
Standards
| • RoHS |
| • GR-326-CORE |
| • GR-1221-CORE |
| • GR-1209-CORE |
