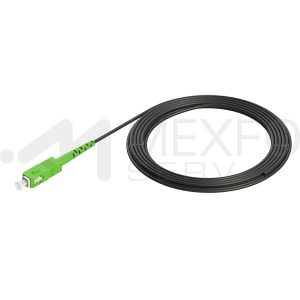

Hardened Drop Fiber Optic Jumper

This factory preterminated flat drop patch cord is the industry standard for existing FTTx installations, it provides a quick and easy “plug and play” connection from the pedestal or handholes to the network terminals (ONTs) and can be installed in aerial, direct-buried or duct installations, reducing the cost and time of drop cable deployment simplifying installation and maintenance.

Clear

Description

Hardened Drop Fiber Optic Jumper

This factory preterminated flat drop patch cord is the industry standard for existing FTTx installations, it provides a quick and easy “plug and play” connection from the pedestal or handholes to the network terminals (ONTs) and can be installed in aerial, direct-buried or duct installations, reducing the cost and time of drop cable deployment simplifying installation and maintenance.

These factory-based assemblies are machine polished to ensure excellence in performance intermateability and durability. All patch cords are video inspected to ensure connector end-faces are free of defects and contamination. Insertion loss is tested using standard-based testing procedures since it is environmentally sealed.

APPLICATION

  • FTTx applkication

Additional information

Cable Type

Flat Drop Cable, Toneable Flat Drop Cable

Furcation Diameter

3.0 mm, 2.0 mm Armored Furcation Cable

Connector Type

SC/UPC Simplex, SC/APC Simplex, FC/UPC Simplex, FC/APC Simplex, ST/UPC Simplex, LC/UPC Simplex, LC/APC Simplex

Length

20 ft, 150 ft, 300 ft, 500 ft, 1,500 ft, 2,000 ft

General Characteristics

     • Custom lengths from 15 to 2000 ft

     • Serial number for each patch cord

     • Male SC/ APC Hardened Connector insertion loss less than 0.40 dB

     • Return loss >-65 dB (APC)

     • UV resistant

     • Operating temperatures: -13° F to +158° F (-25° C to +70°C)

     • Storage temperature: -40° F to +158° F (-40° C to +70°C)

     • All patchcords are 100% tested

     • Environmentally stable

Standards

     • GR-326-CORE

     • GR-3120-CORE

     • GR-1209 / 1221-CORE

     • RoHS

     • IP68 / NEMA 6P

     • ANSI / TIA-568-C.3

     • ANSI / TIA-598-C
