Loose Tube Single-Armored Double Jacket Slim Cable Dry

Waveoptics® Loose Tube Single-Armored Double Jacket Slim Cable Dry is designed for direct-buried installation, as well as for duct and aerial (lashed) installation. Reduced weight design and smaller diameter allows the usage of smaller ducts.

APPLICATIONS
PROTECTIONS

Clear

Description

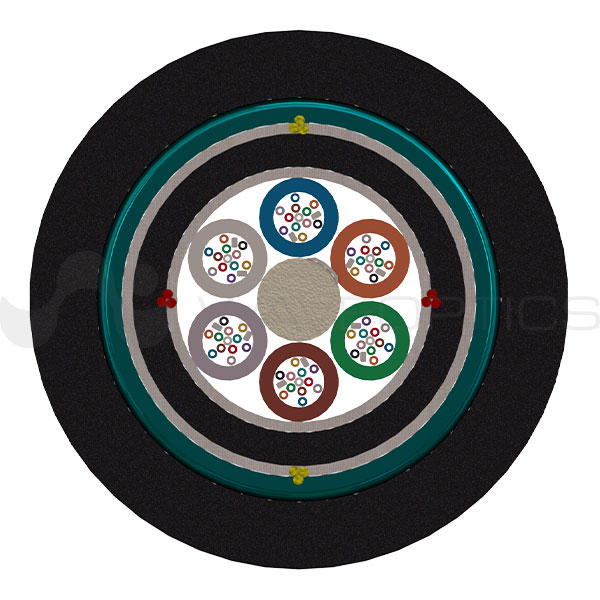

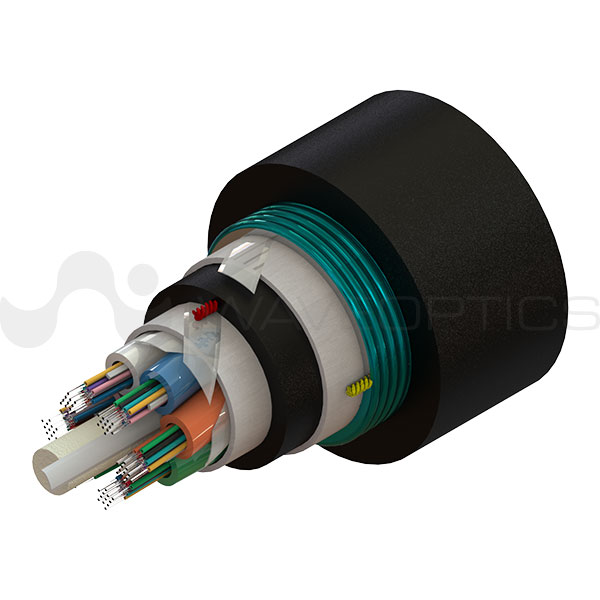

Loose Tube Single-Armored Double Jacket Slim Cable Dry

Waveoptics® Loose Tube Single-Armored Double Jacket Slim Cable Dry is designed for direct-buried installation, as well as for duct and aerial (lashed) installation. Reduced weight design and smaller diameter allows the usage of smaller ducts.

PE double jacket with additives makes a resistant, durable and easy to strip cable, providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

The SZ-stranded method for loose tubes and four ripcords ensure a quick and easy mid-span access.

Dielectric central strength member requires no bonding or grounding.

Corrugated steel armor makes a rugged cable rodent resistant and offers exceptional performance against compression.

Additional information

Fiber Count

2 Fibers, 4 Fibers, 6 Fibers, 8 Fibers, 12 Fibers, 24 Fibers, 36 Fibers, 48 Fibers, 60 Fibers, 72 Fibers, 96 Fibers, 144 Fibers, 192 Fibers, 216 Fibers, 288 Fibers, 432 Fibers

Fiber Type

Waveoptics G652.D, Waveoptics G657.A1, Waveoptics G657.A2, OFS G652.D

Cable Length

10,000 ft, 20,000 ft

Design Properties

Fiber per Tube 2-12
Dielectric Strength Member FRP
Outer Jacket Material / Thickness Polyethylene / 1.6 mm (0.06 in)
Inner Jacket Material / Thickness Polyethylene / 0.8 mm (0.03 in)
Loose Tube Diameter 1.9 mm (0.07 in)
Drum Length 10,000 ft, & 20,000 ft (±5%)

Temperature Range

Operation -40°C to 70°C (-40°F to 158°F)
Installation -30°C to 70°C (-22°F to 158°F)
Storage / Transport -40°C to 70°C (-40°F to 158°F)

Mechanical Properties

Crush Resistance (Short-Term / Long-Term) 4,400 N/100mm / 2,200 N/100mm
Minimum Bend Radius (Operation / Installation) 10 x OD / 20 x OD
