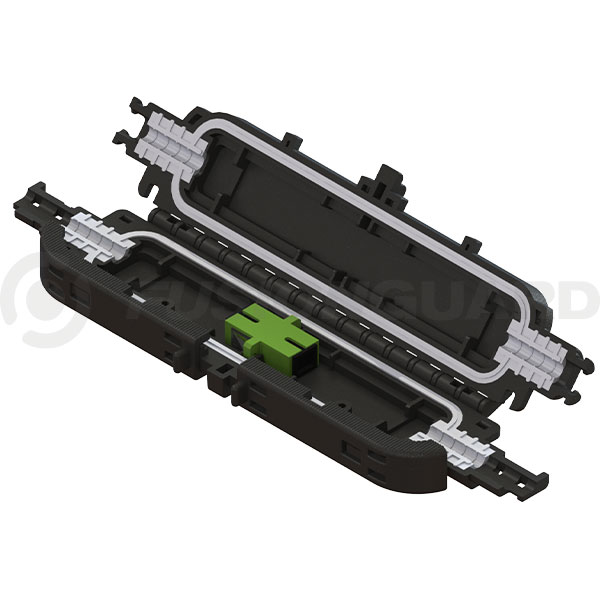

In-line Fiber ROUND DROP CABLE Repair Splice Closure
The In-line Fiber Round Drop Cable Repair Splice Closure is a unique, re-enterable, re-usable, small and easy to install IP68 rated closure that offers different coupling methods such as fusion splicing, mechanical splicing and direct coupling through SC adapter all in the same closure.
- Description
- Additional information
- Specifications
- Data Sheet
- Installation Manual
Description
In-line Fiber Round Drop Cable Repair Splice Closure
The In-line fiber Round drop cable repair splice closure is a unique, re-enterable, re-usable, small and easy to install IP68 rated closure that offers different coupling methods such as fusion splicing, mechanical splicing and direct coupling through SC adapter all in the same closure.
This product is suited for MDU drop cables (4.8 mm – 0.18″, ±1%) providing an ideal solution for fiber repair or quick fiber installation.
Additional information
| Connections | Single Connection (PSCA/PSCU), Double Connection (PFMX) |
|---|---|
| Configuration | Preloaded with SC/APC Adapter, Preloaded with SC/UPC Adapter, Preloaded with 2 Splice Sleeves |
Specifications
| Ingress Protection | IP68 |
| UV Resistant | Yes |
| Round Drop Cable Dimensions | Ø 0.18″ |
| Maximum Number of Fibers | 1 – 2 Fibers |
| Sealing Gasket Material | Engineered Material |
| Dimensions | 8.46″ x 1.87″ x 0.66″ |
| Operating Temperature | -40°F ~ +167°F (-40°C ~ + 75°C) |
| Appearance and Color | Black |
| Approx Weight | 0.20 lbs |
Installation Manual
In-Line Fiber Round Drop Cable Repair Splice Closure – Installation Manual
