In-line Fiber FLAT DROP CABLE Repair Splice Closure
The In-line Fiber Flat Drop Cable Repair Splice Closure is a unique, re-enterable, re-usable, small and easy to install IP68 rated closure that offers different coupling methods such as fusion splicing, mechanical splicing and direct coupling through SC adapter all in the same closure.
- Description
- Additional information
- Specifications
- Data Sheet
- Installation Manual
Description
In-line Fiber Flat Drop Cable Repair Splice Closure
The In-line fiber flat drop cable repair splice closure is a unique, re-enterable, re-usable, small and easy to install IP68 rated closure that offers different coupling methods such as fusion splicing, mechanical splicing and direct coupling through SC adapter all in the same closure.
This product is suited for flat drop and toneable flat drop cables (0.32″ x 0.18″ – 8.0mm x4.5mm, ±1%) standard and Rugged Flat Drop Cable (7.8 mm x 4.3 mm ± 1%), providing an ideal solution for fiber repair or quick fiber installation.
Additional information
| Connections | Single Connection (PSCA/PSCU), Double Connection (PFMX) |
|---|---|

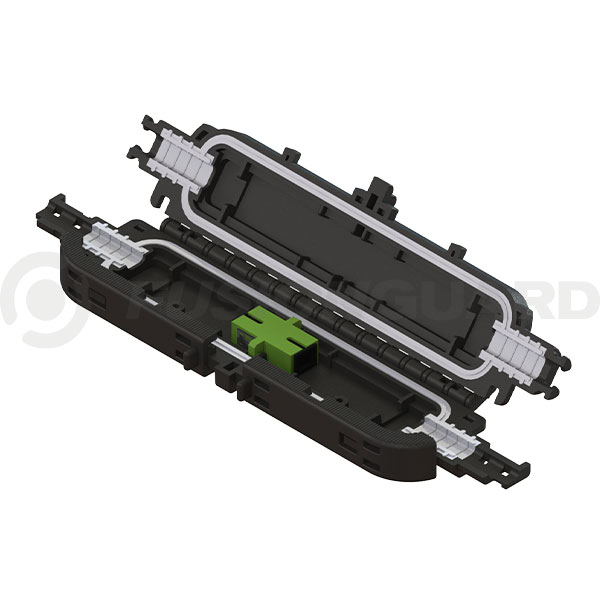

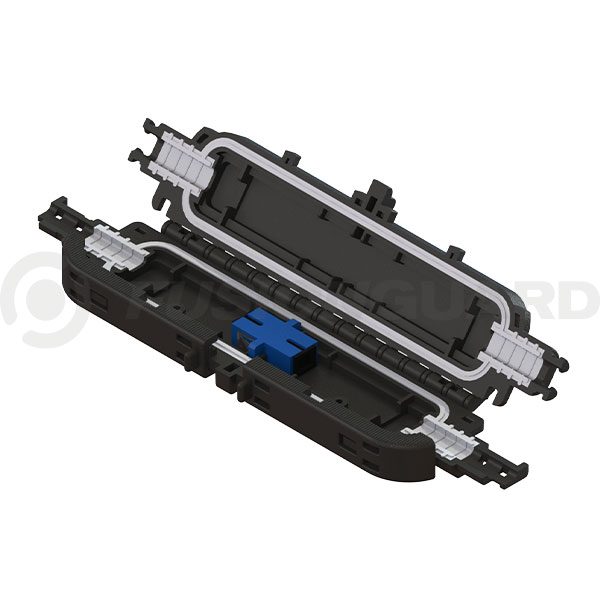

| Configuration | Preloaded with SC/APC Adapter, Preloaded with SC/UPC Adapter, Preloaded with 2 Splice Sleeves |
Specifications
| Ingress Protection | IP68 |
| UV Resistant | Yes |
| Cable Compatibles | Flat Drop Cable: 0.32″ x 0.18″ Rugged Flat Cable: 0.31″ x 0.17″ |
| Maximum Number of Fibers | 1 – 2 Fibers |
| Sealing Gasket Material | Engineered Material |
| Dimensions | 8.46″ x 1.87″ x 0.66″ |
| Operating Temperature | -40°F ~ +167°F (-40°C ~ + 75°C) |
| Appearance and Color | Black |
| Approx Weight | 0.20 lbs |
Installation Manual
In-Line Fiber Flat Drop Cable Repair Splice Closure – Installation Manual
