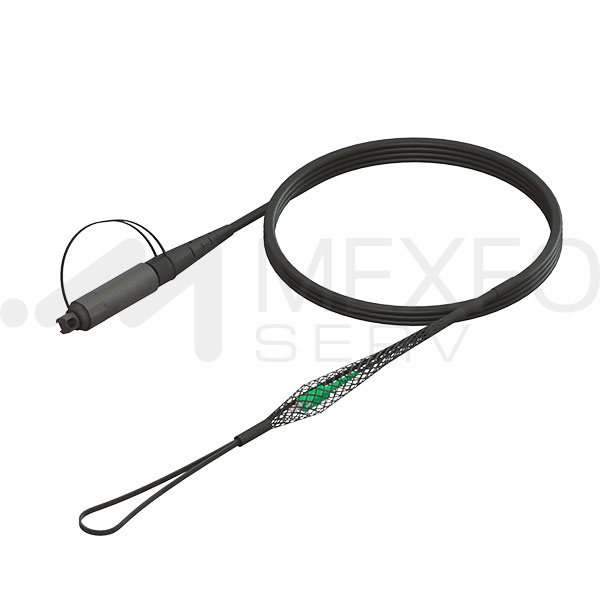

Hybrid SC/APC In-Line Hardened Fiber Optic Jumper
This factory preterminated flat drop patch cord is the industry standard for existing FTTx installations, it provides a quick and easy “plug and play” extension from the pedestal or handholes to hardened drop fiber optic assemblies and can be installed in aerial, direct-buried or duct installations, reducing the cost and time of drop cable deployment simplifying installation and maintenance.
- Description
- Additional information
- General Characteristics
- Standards
- Data Sheet
Description
In-Line Hardened Fiber Optic Jumper
This factory preterminated flat drop patch cord is the industry standard for existing FTTx installations, it provides a quick and easy “plug and play” extension from the pedestal or handholes to hardened drop fiber optic assemblies and can be installed in aerial, direct-buried or duct installations, reducing the cost and time of drop cable deployment simplifying installation and maintenance.
These factory-based assemblies are machine polished to ensure excellence in performance intermateability and durability. All patch cords are video inspected to ensure connector end-faces are free of defects and contamination. Insertion loss is tested using standard-based testing procedures since it is environmentally sealed.
Application
• FTTx Application
Additional information
| Cable Type | Flat Drop Cable, Toneable Flat Drop Cable |
|---|---|
| Pulling Eye | Without Pulling Eye, Pulling-Eye on Non-Hardened Connector Side |
| Connector Type | SC/APC Simplex, LC/PC Simplex |
| Furcation Length | 12 Inches, 24 Inches |
| Packaging Type | Individual Coil, Plastic Reel Packaging |
| Length | 20 ft, 150 ft, 300 ft, 500 ft, 1,500 ft, 2,000 ft |
General Characteristics
| • Custom lengths from 20 ft to 2,000 ft |
| • Serial number for each jumper |
| • Female SC/ APC Hardened Connector insertion loss less than 0.40dB |
| • Return loss > -65 dB(APC) |
| • UV Resistant |
| • Operating Temperatures: -13°F to 158°F (-25°C to +70°C) |
| • Storage Temperatures: -40°F to 158°F (-40°C to +70°C) |
| • All jumpers are 100% tested |
| • Environmentally stable |
| • Optitap® Compatible |
Standards
| • GR-326-CORE |
| • GR-3120-CORE |
| • RoHS |
| • IP68/NEMA 6P |
| • ANSI/TIA-568-C.3 |
| • ANSI/TIA-568-C |
