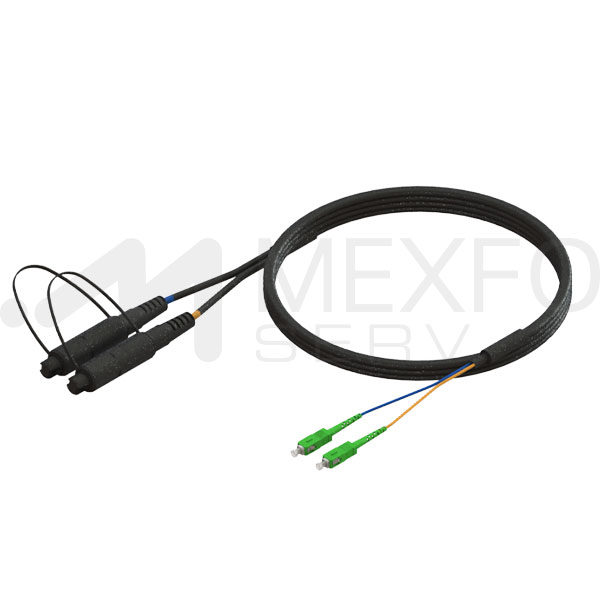

Hardened Drop Fiber Optic Jumper Assemblies
This factory preterminated flat drop jumper is the industry standard for existing FTTx installations, it provides a quick and easy “plug and play” connection from the pedestal or handholes to the network terminals (ONTs) and can be installed in aerial, direct-buried or duct installations, reducing the cost and time of drop cable deployment simplifying installation and maintenance.
- Description
- Additional information
- General Characteristics
- Standards
- Data Sheet
Description
Hardened Drop Fiber Optic Jumper Assemblies
This factory preterminated flat drop jumper is the industry standard for existing FTTx installations, it provides a quick and easy “plug and play” connection from the pedestal or handholes to the network terminals (ONTs) and can be installed in aerial, direct-buried or duct installations, reducing the cost and time of drop cable deployment simplifying installation and maintenance.
These factory-based assemblies are machine polished to ensure excellence in performance intermateability and durability. All jumpers are video inspected to ensure connector end-faces are free of defects and contamination. Insertion loss is tested using standard-based testing procedures since it is environmentally sealed.
Application
• FTTx Application
Additional information
| Cable Type | Flat Drop Cable Dry, Toneable Flat Drop Cable Dry |
|---|---|
| Connector Type | SCHA – SC/APC, SCA – SC/APC |
| Furcation Length | 12 inches, 24 inches, 48 inches |
| Packaging Type | Individual Coil, Plastic Reel Packaging |
| Length | 20 ft, 150 ft, 300 ft, 500 ft, 1,500 ft, 2,000 ft |
General Characteristics
| • Custom lengths from 20 ft to 2,000 ft |
| • Serial number for each jumper |
| • 2-core flat drop loose tube cable |
| • UV Resistant |
| • Operating Temperatures: -13°F to 158°F (-25°C to +70°C) |
| • Storage Temperatures: -40°F to 158°F (-40°C to +70°C) |
| • All jumpers are 100% tested |
| • Environmentally stable |
| • Optitap® Compatible |
Standards
| • GR-326-CORE |
| • GR-3120-CORE |
| • GR-1209 / 1221-CORE |
| • RoHS |
| • IP68 / NEMA 6P |
