Fiber Drop Clamps

AERIALGRIP® Fiber Drop Clamps are dead end clamps made out of AISI 304 stainless steel. They’re ideal for installations on buildings, poles or at mid-span in order support both ends in aerial service drop installations.

Description

Fiber Drop Clamps

AERIALGRIP® Fiber Drop Clamps are dead end clamps made out of AISI 304 stainless steel. They’re ideal for installations on buildings, poles or at mid-span in order support both ends in aerial service drop installations, allowing one to six drop cables to hold and tense. Our clamps support mechanical tension that usually exceeds the yield strength of drop cables.

Features

• Removable and reusable
• Corrosion resistant
• No maintenance required

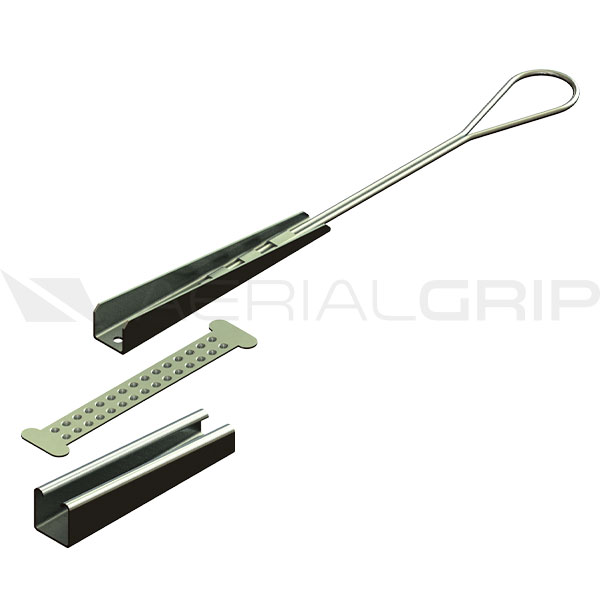

• Stainless steel tail wire, clamp body and shim
• Body and shim manufactured with AISI304 stainless steel
• Tail wire manufactured with AISI430 stainless steel
• Mechanical strength of 551 lb and 800 lb (250 kg to 362.9 kg)
• Compliant with Telcordia specification GR-3174
• 0.07 in (2 mm) stainless steel wire diameter
