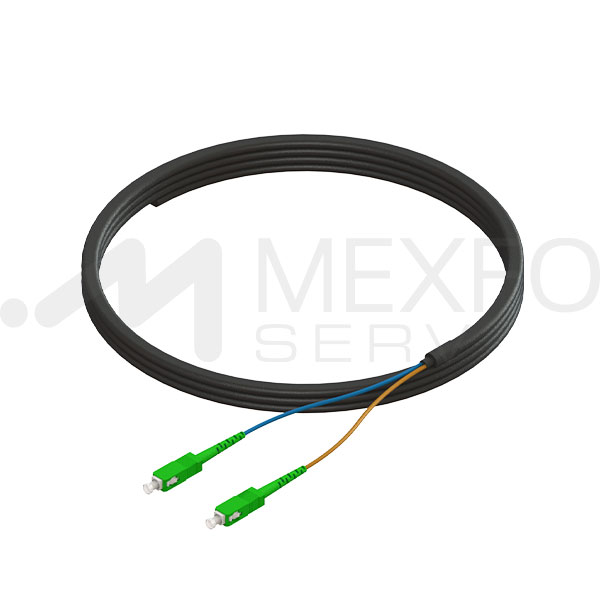

2-Core Flat Drop Fiber Optic Pigtail
The pigtail is a high-quality optical assembly manufactured using custom connectors and correct fusion splicing to accommodate another fiber cable in a tray, rack or splice closure. Flat drop cable assemblies are designed to simplify the transition from outdoor environment to an indoor Optical Network Terminal (ONT).It can be installed in aerial or duct installations.
- Description
- Additional information
- General Characteristics
- Standards
- Data Sheet
Description
2-Core Flat Drop Fiber Optic Pigtail
The pigtail is a high-quality optical assembly manufactured using custom connectors and correct fusion splicing to accommodate another fiber cable in a tray, rack or splice closure. Flat drop cable assemblies are designed to simplify the transition from outdoor environment to an indoor Optical Network Terminal (ONT).It can be installed in aerial or duct installations.
These factory preterminated flat drop pigtails are the industry 2-core standard for existing FTTx installations. All pigtails are video inspected to ensure connector end-faces are free of defects and contamination.
Applications
| • FTTx Application |
| • Fusion Splicing |
| • Outdoor/Indoor Transition |
Additional information
| Cable Type | Flat Drop Cable, Toneable Flat Drop Cable |
|---|---|
| Connector Type | SC/ UPC Connector, SC/ APC Connector, LC/ UPC Connector, LC/ APC Connector |
| Furcation Length | 12 Inches, 24 Inches |
| Packaging Type | Individual Coil, Plastic Reel Packaging |
| Length | 20 ft, 150 ft, 300 ft, 500 ft, 1,500 ft, 2,000 ft |
General Characteristics
| • Custom Lengths from 20 to 2,000 ft |
| • Serial number for each pigtail |
| • UV Resistance |
| • Insertion Loss: ? 0.20 dB (Each Connector) |
| • Return Loss (APC): ? -65dB (Each Connector) |
| • All pigtails are 100% tested |
| • Environmentally stable |
| • Easy to strip cable for quick splicing |
Standards
| • RoHS |
| • ANSI / TIA-568-C.3 |
| • GR-326-CORE |
| • GR-1221-CORE |
